Plamya E1 LLC supplies tanks with a capacity ranging from 9m3 to more than 4000m3, and with a diameter ranging from 3.1m. Consequently, we are able to to offer a product for a wide range of specifications and requirements. The tanks can be installed by the specialists of Plamya E1 LLC, or the specialists of manufacturer can perform the supervision installation.

The highest quality galvanized steel sheets, which are bolted with each other to form a cylinder construction. Such a technology allows to reduce installation time and costs - replacing the massive concreting and welding works.

For sealing is used, in advance industrially produced, membrane, which reduces water leakage risks. Each membrane before sending out, having a full quality control, which excludes the existence of any defect. As the base and the top of the tank fixings are used L-shaped, galvanized steel profiles. They are curved to each tank individually. Depending on the size of the tank, it is also used to as a wind stiffener, to withstand both - the contents and the wind load.

As standard tanks are equipped with inlet, outlet, overflow and drain connections. According to customer requirements connections are adapted to the project specification. Very often it is necessary to install the tank with insulation. We offer submersible 3kW heater, internal and external insulation. For each project specification, we recommend the right solution, in order that stored substance do not freeze even in the most extreme weather conditions.

According to customer requirements, we equip tanks with accessories - side shell manway, caged ladder, service platform, etc.

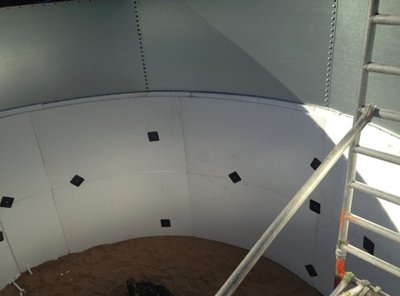

Tank assembly

Assembly is carried out using a hydraulic jacks or scaffoldings. Advised to consult for the recommended method for assembly, for a given tank size.

The standard fire tanks include the following components:

• Suction branch pipe with an antivortex plate, a butterfly valve and a symmetrical connecting pipe DN100;
• Branch pipe for water taking DN65 with a connecting edge;
• Hydrostatic level sensor;
• Drain valve DN80;
• Filling assembly;
• Overflow assembly.

Also for the fire tanks a large number of options are available: exterior finish of polyethylene of different colours, heaters with automatic shut-off, trim corners for covering installation, internal and external insulation, reinforced roof with large snow loads. Diameters of all the assemblies can be changed according to the customer requirements.

Advantages:

• More competitive method of solutions for fire water storage in comparison with concrete tanks;
• Rapidity and easiness of installation at any time of the year;
• Safety of mounting using jacks, which allows to avoid works at height, no need to use other auxiliary equipment on the assembly site;
• Modular system with bolt clamps allows to increase sizes of the tanks, disassemble and re-assemble the tank at any other location;
• Constant volume of water is available at any time;
• No conditions for bacterial growth (photosynthesis) - water in the tank is protected from light.
